Wireless remote control system

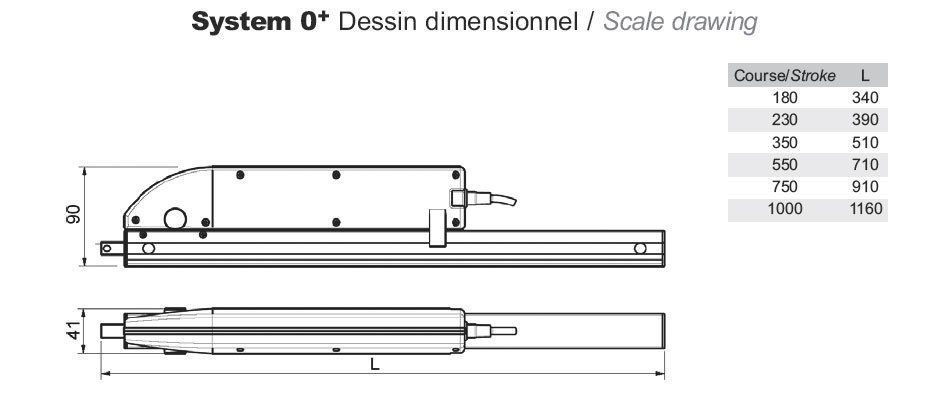

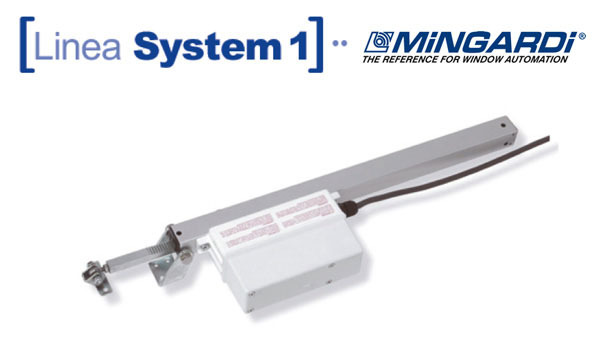

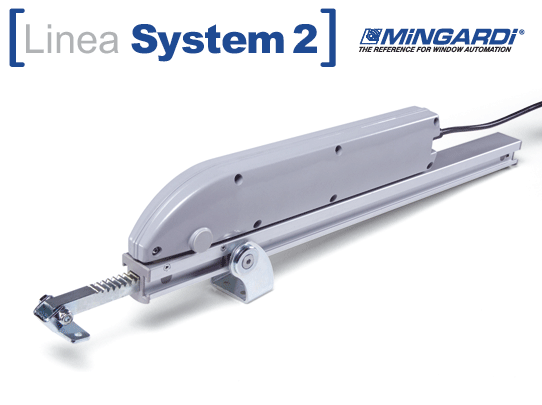

S1
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 600N 180.230.350.550.750.1000mm 20W ca.5 mm/s 230V 200N 180.230.350.550.750.1000mm 20W ca.14 mm/s 24V 800N 180.230.350.550.750.1000mm 25W ca.10 mm/s 24V 300N 180.230.350.550.750.1000mm 25W ca.20 mm/s Dimension View Mingardi Catalogues

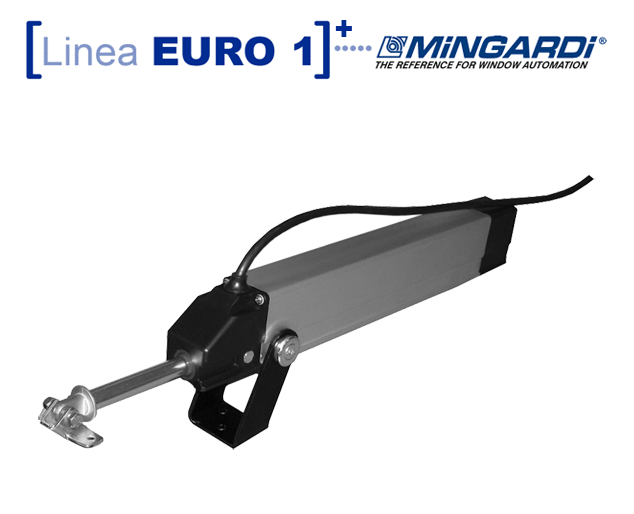

EURO 1
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 450N 230.300.500mm 25W ca.10 mm/s 24V 450N 230.300.500mm 22W ca.10 mm/s 230V 1000N 70.300mm 20W ca.2,5 mm/s 24V 1000N 70.300mm 16W ca.2,5 mm/s Dimension View Mingardi Catalogues

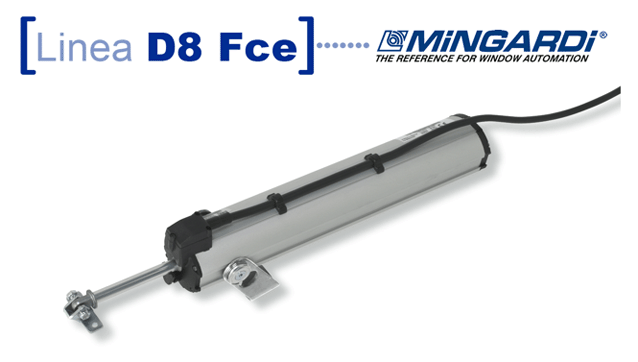

D8
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 500N 200mm 175W ca.19 mm/s 230V 500N 300mm 175W ca.19 mm/s 230V 500N 400mm 175W ca.19 mm/s Dimension View Mingardi Catalogues

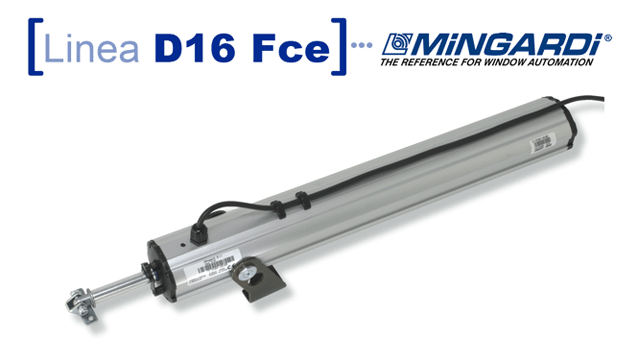

D16
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 1000N 300mm 270W ca.21 mm/s 24V 1000N 500mm 270W ca.21 mm/s Dimension View Mingardi Catalogues

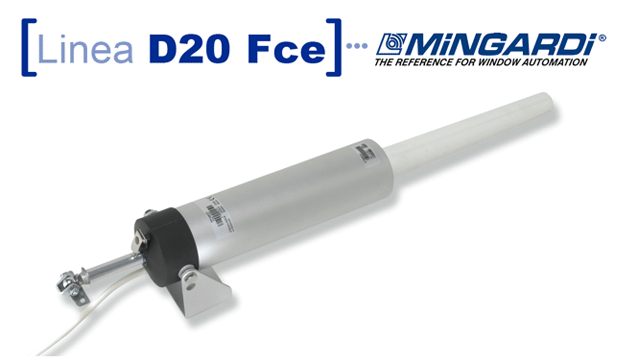

D20
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 600N 180mm 250W ca.22 mm/s 230V 600N 225mm 250W ca.22 mm/s 230V 600N 300mm 250W ca.22 mm/s 230V 600N 500mm 250W ca.22 mm/s Dimension View Mingardi Catalogues

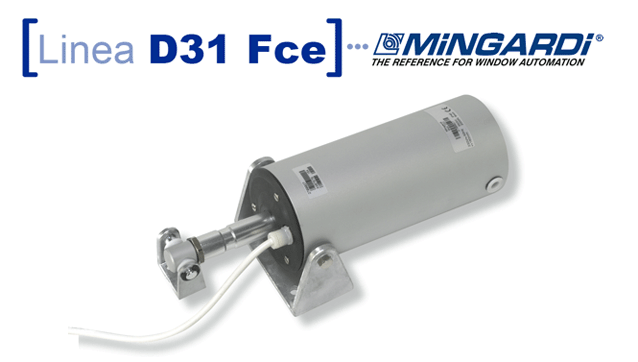

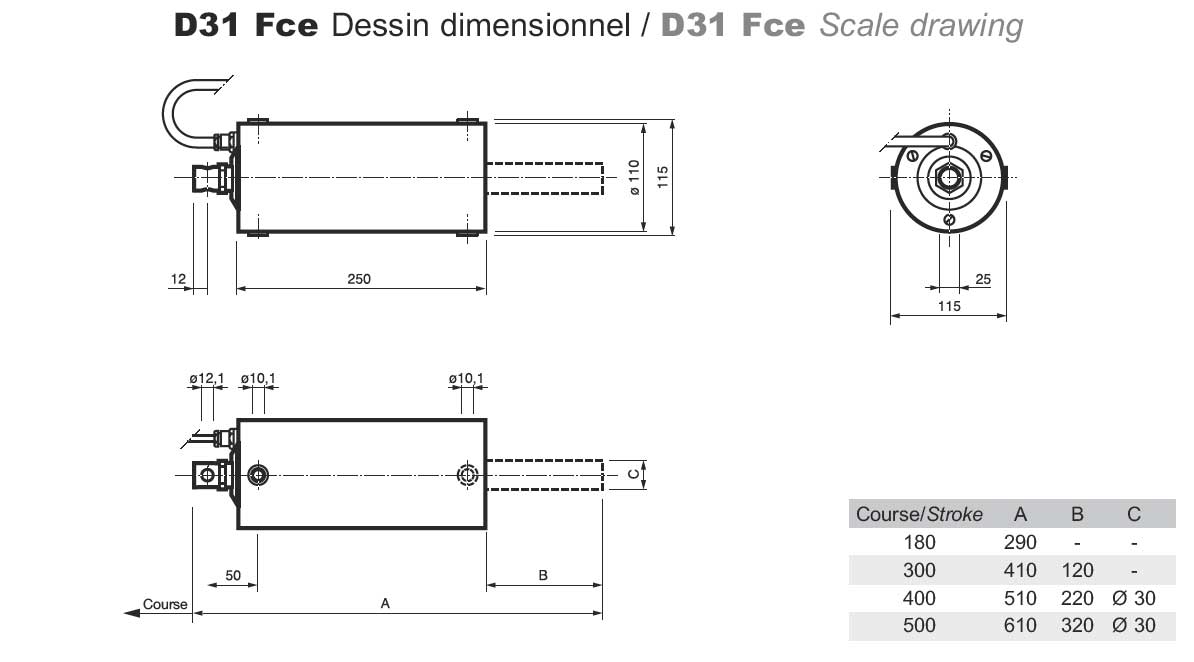

D31
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 2000N 180mm 350W ca.14 mm/s 230V 2000N 300mm 350W ca.14 mm/s 230V 2000N 400mm 350W ca.14 mm/s 230V 2000N 500mm 350W ca.14 mm/s Dimension View Mingardi Catalogues

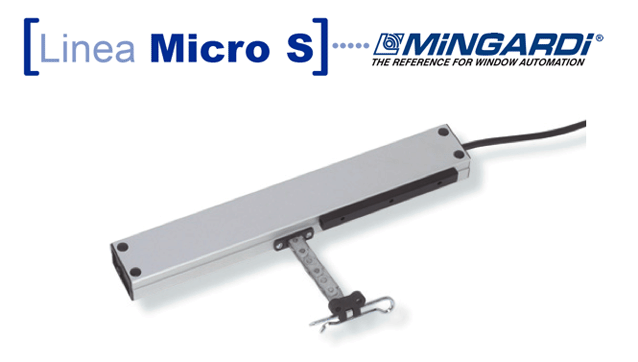

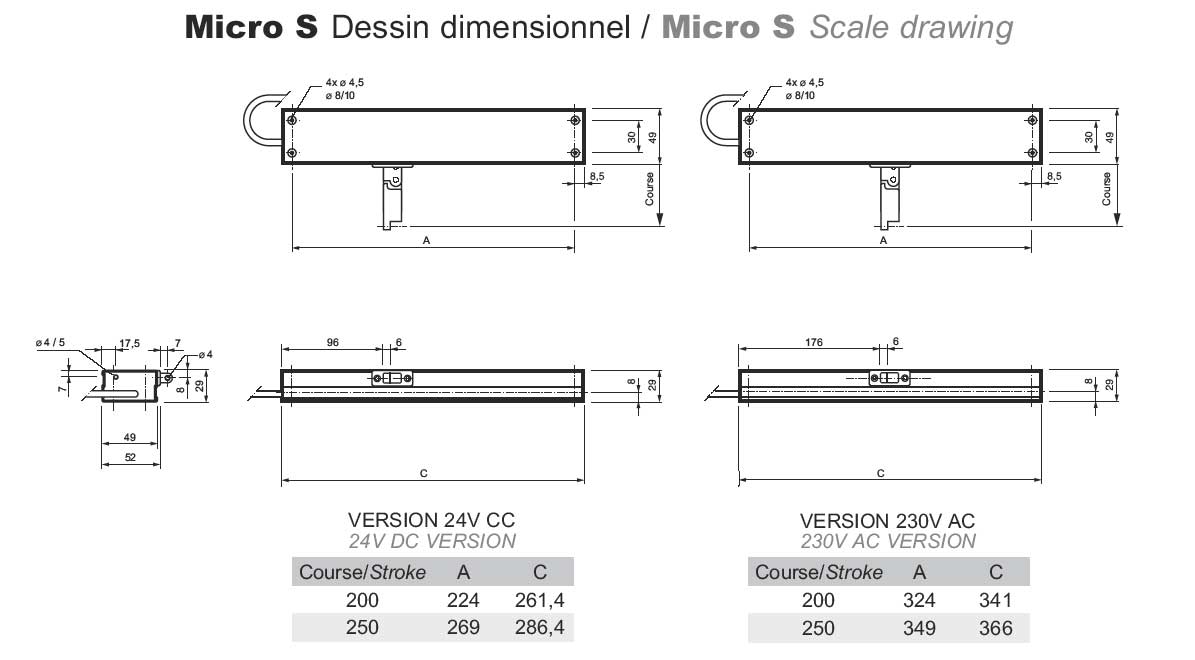

Micro S
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 200N 200mm 30W ca.10 mm/s 230V 200N 250mm 30W ca.10 mm/s 24V 200N 200mm 20W ca.10 mm/s 24V 200N 250mm 20W ca.10 mm/s Dimension View Mingardi Catalogues

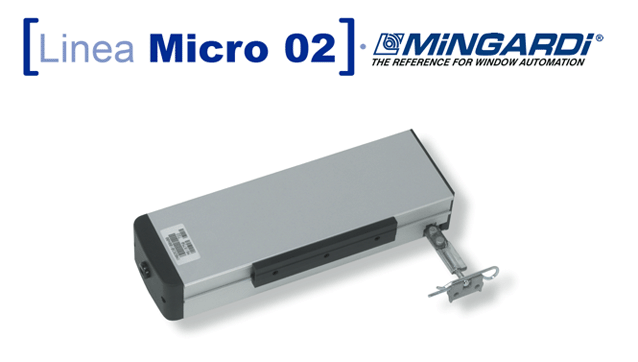

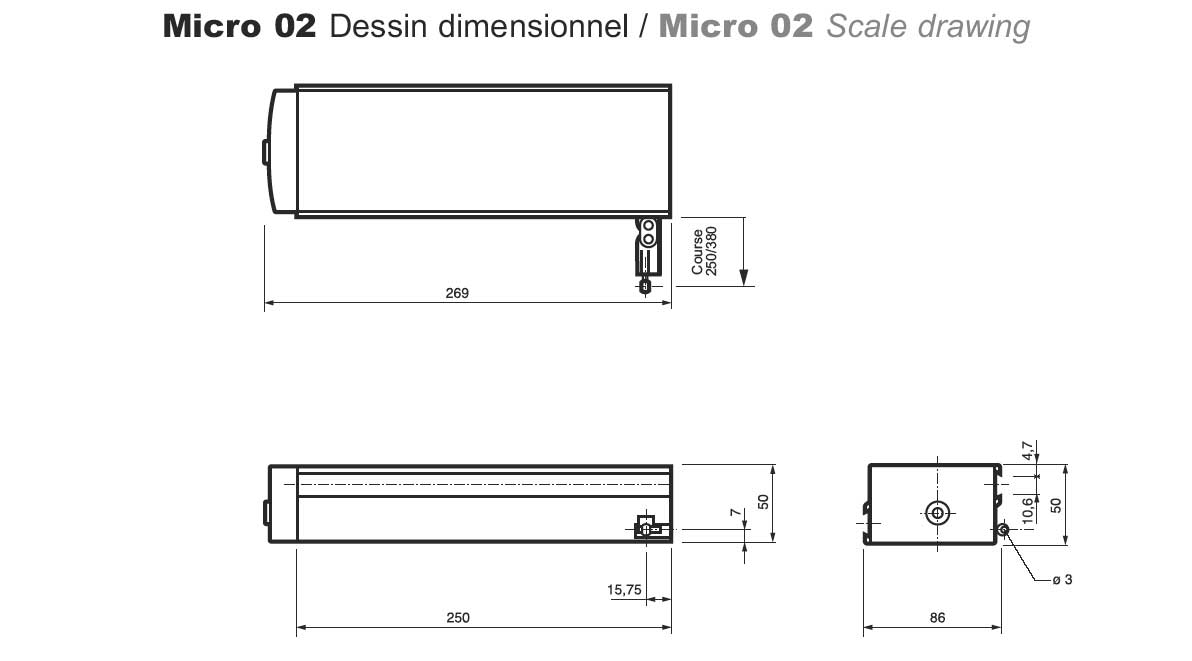

Micro 02
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 200N 150mm 130W ca.38 mm/s 230V 200N 300mm 130W ca.38 mm/s 24V 200N 150mm 55W ca.38 mm/s 24V 200N 300mm 55W ca.38 mm/s Dimension View Mingardi Catalogues

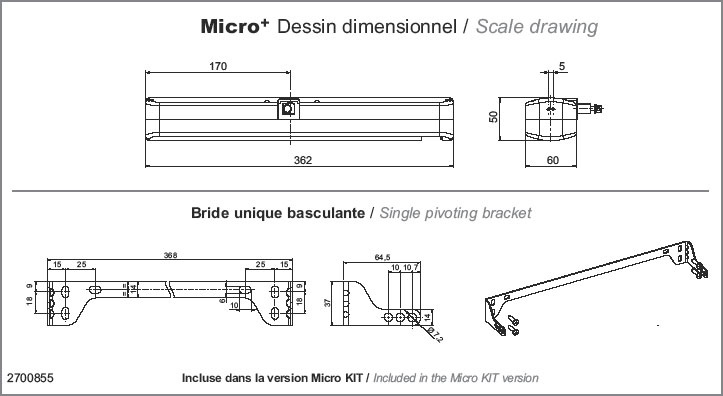

Micro KIT
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 250N 400mm 130W ca.25 mm/s 230V 250N 400mm 130W ca.25 mm/s 230V 250N 400mm 130W ca.25 mm/s 230V 250N 400mm 130W ca.25 mm/s Dimension View Mingardi Catalogues

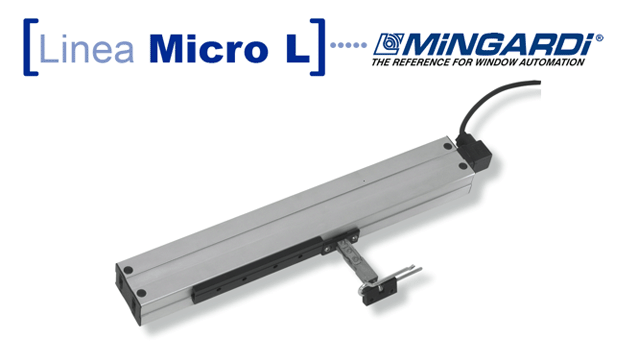

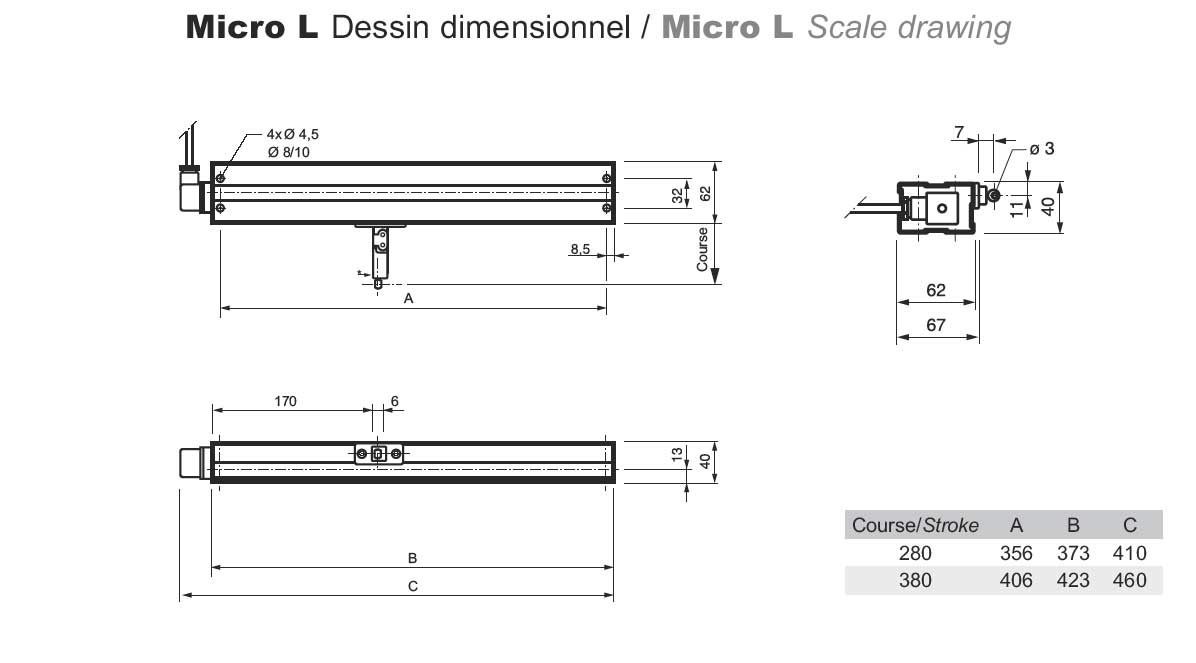

Micro L
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 350N 280mm 110W ca.15 mm/s 230V 350N 380mm 110W ca.15 mm/s 24V 350N 280mm 130W ca.25 mm/s 24V 350N 380mm 130W ca.25 mm/s Dimension View Mingardi Catalogues

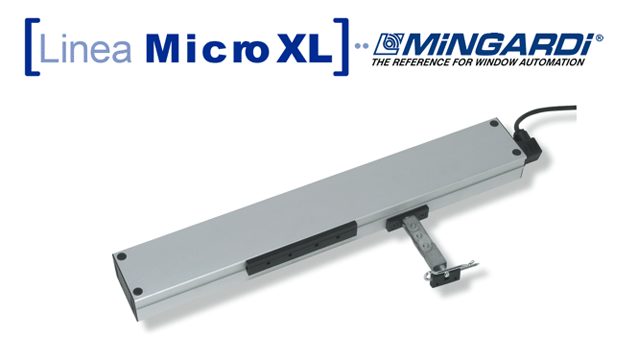

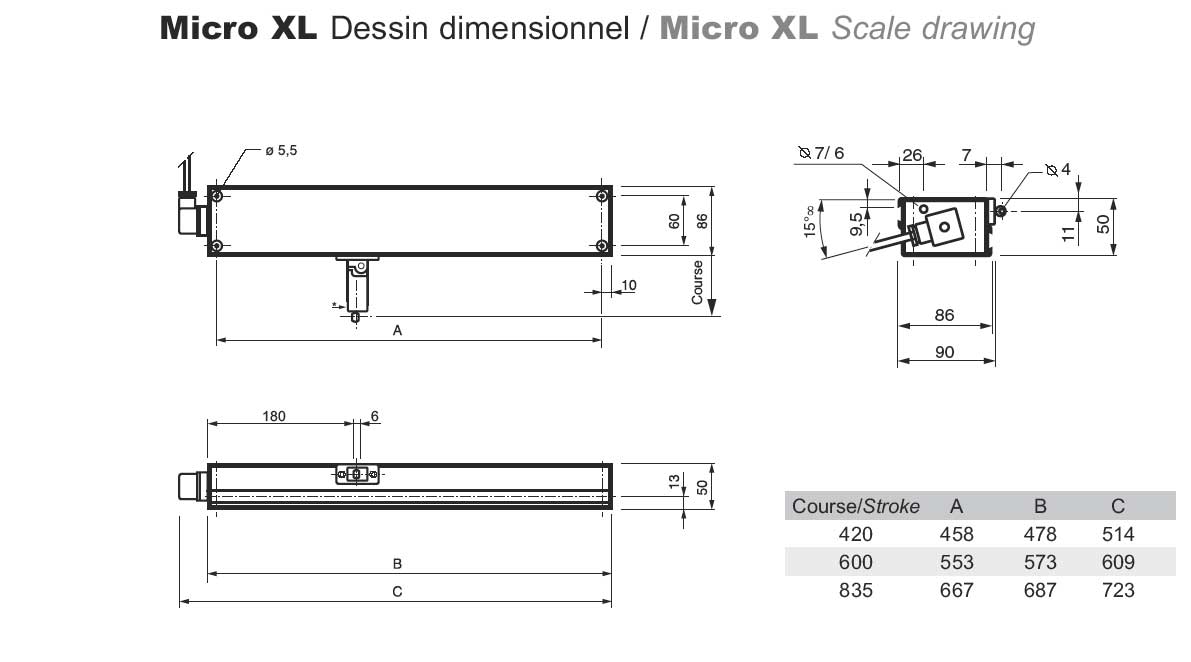

Micro XL
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 400N 420mm 50W ca.15 mm/s 230V 400N 600mm 50W ca.15 mm/s 24V 400N 420mm 50W ca.15 mm/s 24V 400N 600mm 50w ca.15 mm/s 24V 400N 835mm 50W ca.15 mm/s Dimension View Mingardi Catalogues

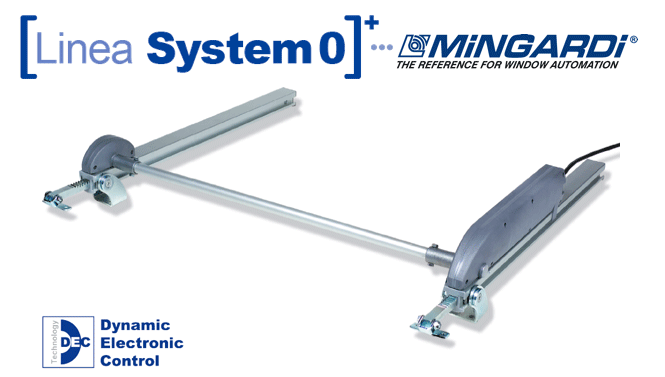

S0
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 500N 230mm 0,2A ca.13 mm/s 230V 500N 750mm 0,2A ca.13 mm/s 24V 500N 230mm 0,2A ca.13 mm/s 24V 500N 750mm 0,2A ca.13 mm/s Dimension View Mingardi Catalogues
S2
	VOLTAGE THRUST TENSILE STROKE CONSUMPTION MAX SPEED MIN. 230V 1000N 230mm 1,70A ~7 mm/s 230V 1000N 550mm 1,70A ~7 mm/s 230V 1000N 750mm 1,70A   24V 1000N 230mm 1,70A ~7 mm/s 24V 1000N 550mm 1,70A   24V 1000N 750mm 1,70A ~7 mm/s Dimension View Mingardi Catalogues

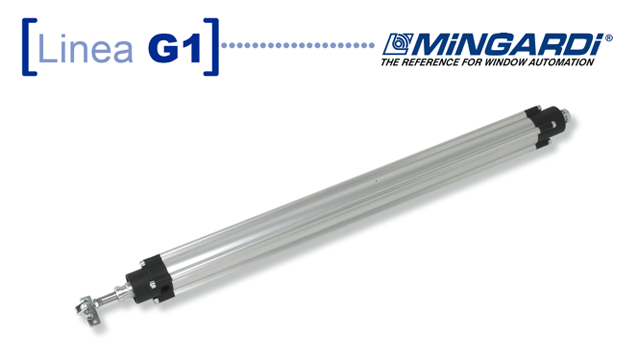

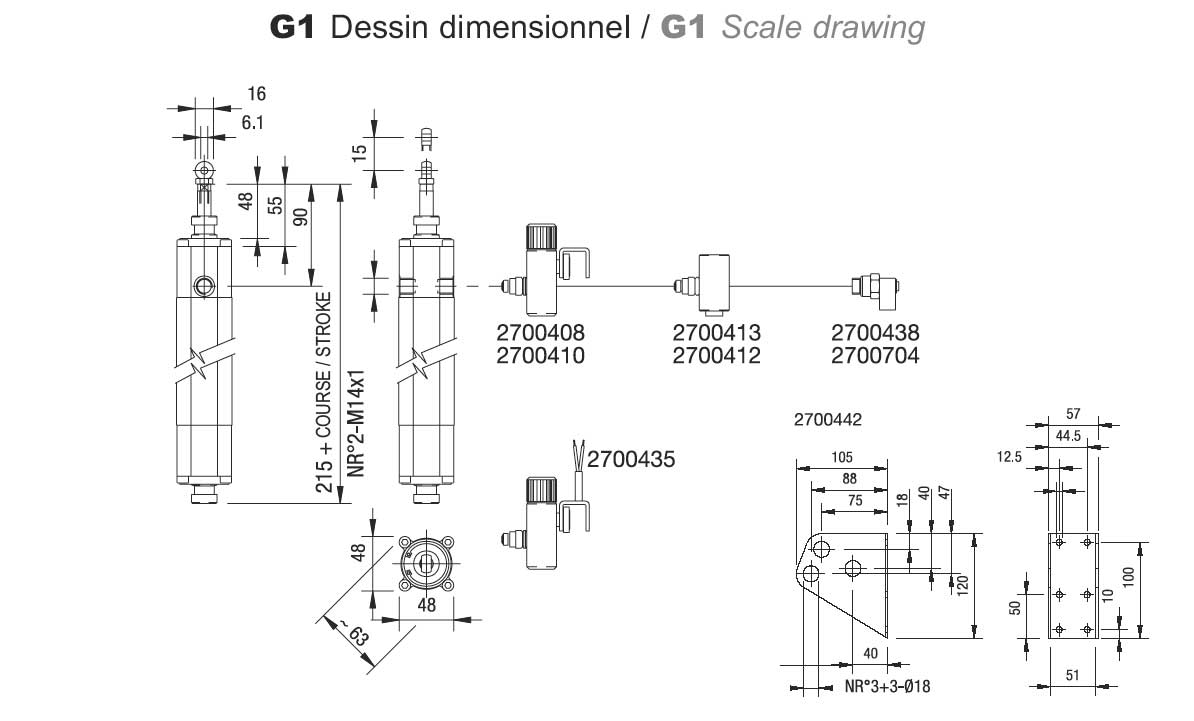

G1
	THRUST TENSILE STROKE CYLINDER? DIAMETER ROD? DIAMETER 1250N 180mm O 40?mm O 12?mm 1250N 350mm O 40?mm O 12?mm 1250N 550mm O 40?mm O 12?mm 1250N 730mm O 40?mm O 12?mm 1250N 1000mm O 40?mm O 12?mm Dimension View Mingardi Catalogues

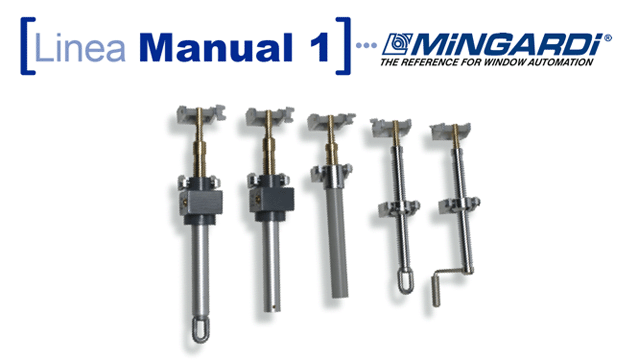

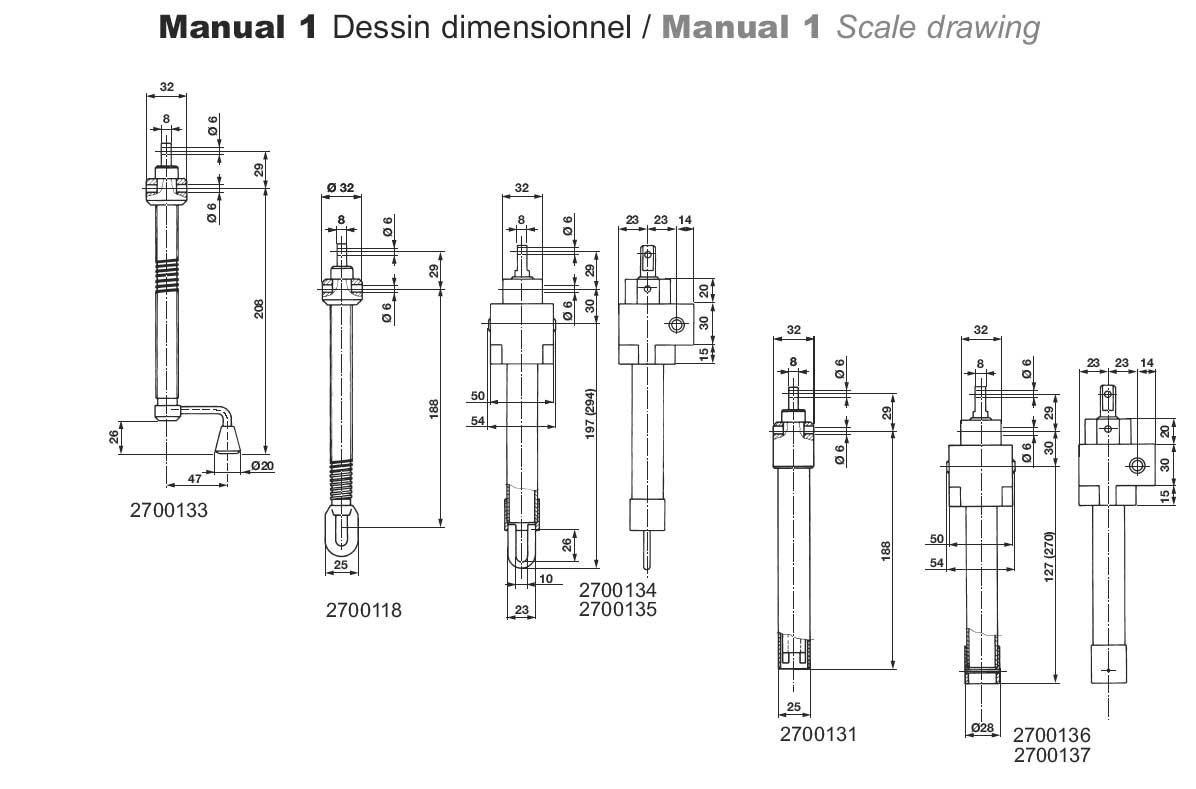

Manual 1
	DESCRIPTION Handle-type actuator with brackets Ring-type actuator with brackets Ring-type actuator for tandem with brackets - S. 300 mm Ring-type actuator for tandem with brackets - S. 500 mm Crank handle with hook for ring-type actuator - L. 1000 mm Crank handle with hook for ring-type actuator - L. 1500 mm Bayonet-type actuator with brackets Bayonet-type actuator for tandem with brackets - S. 300 mm Crank handle with bayonet-type - L. 1000 mm Crank handle with bayonet-type - L. 2000 mm Dimension View Mingardi Catalogues

Example of Installation

Example of system photo
